Scaling Up Purity: The JT1047-1 (21.5mm) Silicone Duckbill Valve for Higher-Flow Medical Applications
Blog URL Source: https://duckbillvalvefactory.com

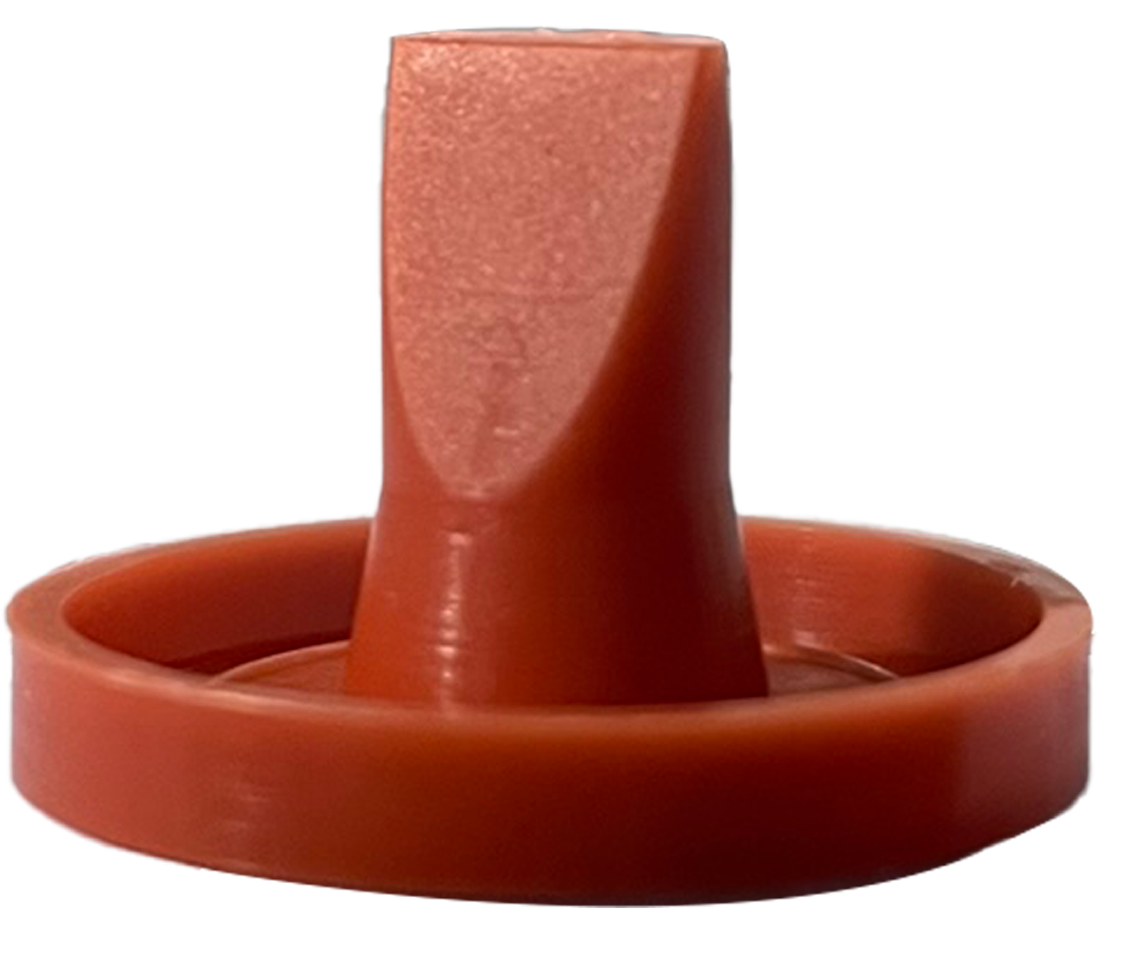

In medical and biotechnology fluid handling, the need for purity does not diminish as flow rates increase. At DuckBill Valve Factory, our ISO13485-certified cleanroom and 17 years of specialized molding expertise allow us to scale our solutions without compromising on quality. Today, we are pleased to introduce the latest addition to our silicone valve family: the JT1047-1, now available with a 21.5mm outer diameter for applications requiring higher flow capacity combined with medical-grade material integrity.
This iteration of the JT1047-1 is designed for system designers who need the reliability and biocompatibility of a precision silicone check valve in a larger, more robust format. It seamlessly bridges the gap between our micro-valves and industrial components, offering a versatile solution for critical care equipment and bioprocessing systems.
JT1047-1 (21.5mm): Specifications for Enhanced Flow and Purity
This model is defined by its increased footprint, pure material composition, and consistent softness:
- Critical Dimensions: With a larger outer diameter of 21.5mm and a low-profile height of 14.4mm, the JT1047-1 is engineered for integration into fluid pathways that demand higher flow rates than our 19.5mm model can provide. Its size is ideal for larger manifolds, dialysis machines, and heart-lung bypass circuit components.
- Material Composition (Silicone): This valve is manufactured from high-quality, medical-grade silicone. Silicone is the material of choice for countless medical applications due to its exceptional biocompatibility, wide temperature tolerance (-50°C to +200°C), and inherent flexibility. It is non-toxic, odorless, and resists microbial growth.
- Material Hardness: It features a precisely controlled shore hardness of 55 degrees. This soft durometer is a key feature, ensuring the valve’s lips remain exceptionally flexible. For a 21.5mm valve, this softness guarantees a very low cracking pressure and a gentle, compliant seal against backflow—essential when handling sensitive biological fluids or operating in low-pressure gravity-fed systems.
- Visual Identification: The valve is manufactured in the translucent or opaque white typical of high-purity silicone, allowing for easy visual inspection of the sealing surfaces and fluid path.

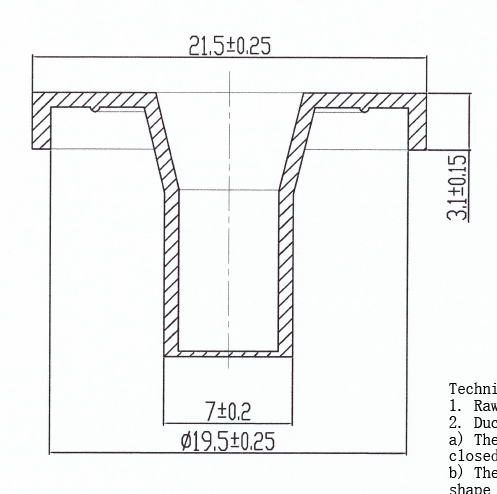

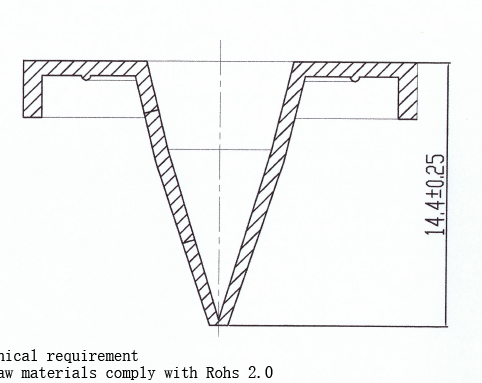

- Technical Drawing: For precise integration, the official technical drawing for the JT1047-1 (21.5mm) is available, detailing all critical tolerances, lip geometry, and recommended mounting specifications for this new size.
Primary Applications: Where Higher Flow Meets Material Purity
Given its medical-grade silicone construction, soft 55-durometer flexibility, and increased 21.5mm diameter, this valve is ideally suited for:
- Cardiopulmonary Bypass and ECMO Circuits: In these critical life-support systems, the JT1047-1 can function as a reliable one-way valve in shunts or recirculation loops, ensuring proper blood flow direction without introducing turbulent or damaging forces.
- Dialysis Machines: Used in fluid pathways to manage the flow of dialysate and blood, its soft silicone ensures a secure seal while maintaining the purity of the fluid path, which is crucial for patient safety.
- Large-Volume Infusion Systems: In rapid infusers or contrast media injectors used in medical imaging, the 21.5mm size accommodates higher flow rates while the 55-durometer silicone provides a responsive, low-resistance check valve action.
- Bioprocessing and Single-Use Systems: For the transfer of culture media, buffers, and samples in bioreactors, the JT1047-1 offers a sterile, disposable, and biocompatible one-way flow control solution, preventing cross-contamination.
Material and Performance Characteristics
The JT1047-1 (21.5mm) is manufactured under strict ISO13485 protocols in our cleanroom facilities.
- Medical-Grade Silicone Advantages: Silicone offers unparalleled biocompatibility, making it suitable for prolonged contact with blood and pharmaceuticals. It is also highly resistant to repeated sterilization (autoclaving, EtO, gamma) without significant degradation. Its transparency aids in visual inspection for bubbles or occlusions.
- Optimized Softness (55 Shore A): The 55-durometer formulation provides an exceptionally gentle sealing action at this scale. It results in a very low and consistent cracking pressure, making the valve highly sensitive to forward flow. Simultaneously, the soft, compliant lips create a “drop-tight” seal against back pressure, ensuring reliable one-way flow control without requiring high closing forces.
- Molding Precision and Consistency: Our advanced molding processes ensure that the larger 21.5mm geometry is reproduced with the same flawless consistency as our micro-valves, guaranteeing reliable performance from valve to valve.
Frequently Asked Questions about the JT1047-1 (21.5mm)
Q1: How does the 55-durometer softness benefit a 21.5mm valve?
A: For a larger valve, maintaining softness (55 durometer) is key to ensuring low cracking pressure. It means the larger sealing lips open with minimal resistance, which is vital for gravity-fed systems or sensitive pressure circuits. The softness also allows the valve to conform gently to its seat, creating a reliable seal even at very low back pressures, without requiring a stiff, hard-to-open bill.
Q2: Why is this valve offered in a 21.5mm size?
A: This size directly addresses the need for higher flow capacity in medical devices while maintaining the material purity of silicone. It allows engineers to design systems that can handle greater fluid volumes without moving to industrial-grade valves that might not offer the same level of biocompatibility or cleanability. It provides a “sweet spot” for medium-flow applications.
Q3: Is the JT1047-1 (21.5mm) suitable for sterile single-use assemblies?
A: Absolutely. Manufactured in our ISO13485 cleanroom, the valve can be supplied in appropriate packaging for integration into sterile, single-use assemblies. Its medical-grade silicone is fully compatible with gamma and EtO sterilization methods commonly used for disposable medical devices.
Q4: What is the typical cracking pressure for this larger 21.5mm valve?
A: Despite its larger size, the soft 55-durometer silicone ensures a low cracking pressure. It is typically in the range of 0.2 to 0.8 PSI, depending on the specific fluid and installation orientation. This makes it exceptionally sensitive and suitable for low-pressure systems. Exact, tested data can be provided upon request.
Q5: Can the valve’s dimensions or material be customized further?
A: Yes, as highlighted on our website, we specialize in OEM and ODM custom solutions. While the JT1047-1 (21.5mm) is a standard model, our engineering team can work with you to modify its dimensions, or even explore other medical-grade materials, to perfectly fit your unique device architecture and performance requirements.
Conclusion
The JT1047-1 (21.5mm) Duckbill Valve demonstrates our commitment to providing precision solutions across a range of scales. With its larger 21.5mm footprint, biocompatible silicone construction, and soft 55-durometer action, it offers a versatile, high-performance solution for fluid control in critical medical and bioprocessing applications where both purity and flow capacity are paramount.
For design engineers seeking a reliable, soft-sealing check valve in this new, larger format, the JT1047-1 delivers the quality and consistency expected from an ISO13485-certified manufacturer. To request the detailed technical drawing, discuss custom modifications, or order evaluation samples, please contact our engineering sales team today.
