The JT1076-1 (EPDM): A Chemically Resistant Slender Duckbill Valve for Demanding Applications
Blog URL Source: https://duckbillvalvefactory.com
In industrial and chemical fluid handling, material compatibility is often the primary driver of component selection. At DuckBill Valve Factory, our ISO13485-certified cleanroom and 17 years of specialized molding expertise allow us to offer precision valves in a variety of high-performance materials. Today, we introduce the JT1076-1 in EPDM, a slender duckbill check valve engineered for applications requiring excellent chemical resistance combined with a deep-dwelling profile.
The JT1076-1 (EPDM) is designed for environments where exposure to aggressive media is a concern. Its 11.15mm diameter and 20.95mm height create a probe-like shape ideal for deep insertion into manifolds or ports, while the EPDM material provides robust resistance to a wide range of chemicals, ozone, and weathering.
JT1076-1 (EPDM): Specifications for Chemical Resistance
This model is defined by its high-performance material, deep-dwell geometry, and balanced physical properties:
- Critical Dimensions: With a moderate outer diameter of 11.15mm and an extended height of 20.95mm, the JT1076-1 features a slender, probe-like profile. This shape is purpose-designed to position the sealing lips deeper within a port or fitting, enhancing the security of the seal and simplifying system design.
- Material Composition (EPDM): This valve is manufactured from high-quality EPDM (Ethylene Propylene Diene Monomer) . EPDM is renowned for its excellent resistance to polar fluids (like ketones and alcohols), steam, hot water, and a wide range of chemicals. It also offers superior resistance to ozone, UV, and weathering, making it exceptionally durable.
- Optimized Material Hardness: It features a precisely controlled shore hardness of 60 degrees. This firmness provides enhanced structural integrity for the longer 20.95mm body, ensuring it resists buckling during insertion and maintains its shape under pressure or vacuum, while the EPDM formulation retains enough flexibility for a reliable seal.

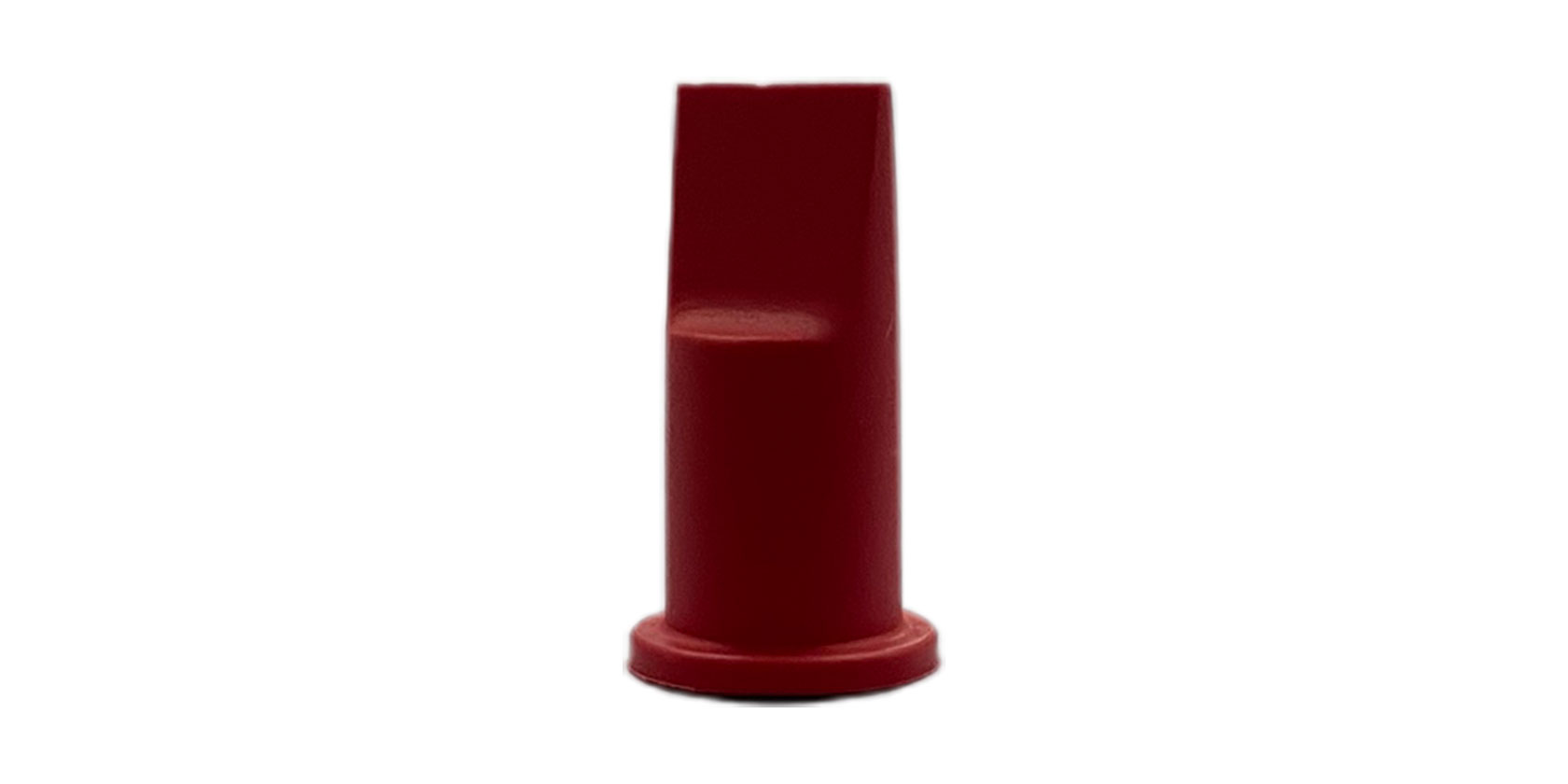

- Visual Identification: The valve is manufactured in a distinct red color, enabling rapid visual verification during assembly and minimizing the risk of material mix-ups—especially important when EPDM and silicone components are used in the same facility.

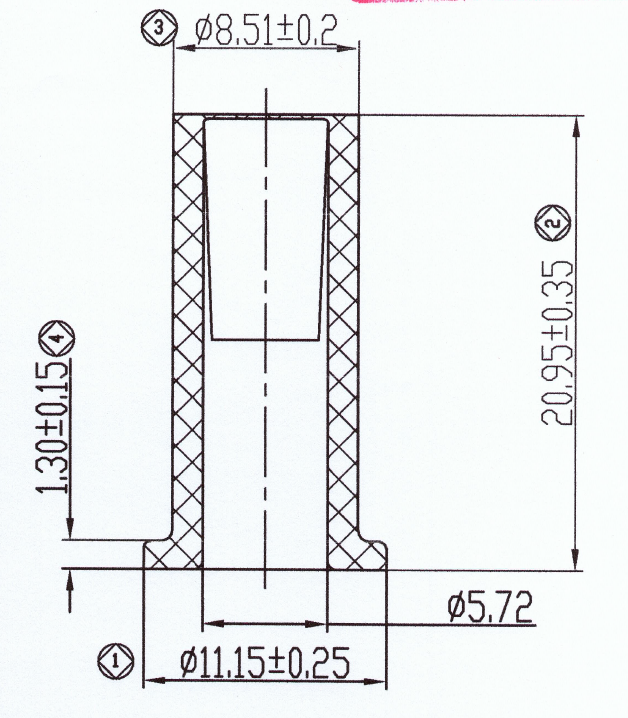

- Technical Drawing: For precise integration, the official technical drawing for the JT1076-1 (EPDM) is available, detailing all critical tolerances and lip geometry.
Primary Applications: Deep Port Sealing in Aggressive Environments
Given its EPDM construction, 60-durometer firmness, and slender 11.15mm x 20.95mm shape, this valve is ideally suited for:
- Chemical Dispensing Systems: Its excellent resistance to many chemicals makes it perfect for one-way valving in dispensers for cleaning agents, solvents, and industrial fluids.
- Water Treatment and Analysis Equipment: EPDM’s resistance to ozone and water treatment chemicals (like chlorine) makes the JT1076-1 ideal for use in sampling ports, reagent addition lines, and analytical instruments.
- Industrial Manifolds and Connectors: Its elongated body can be inserted deeply into female connectors or manifold ports, providing a secure, chemically resistant seal in lubrication or cooling systems.
Performance and Common Questions
The 60-durometer EPDM provides a balanced performance: a reliable cracking pressure (typically 0.5-1.0 PSI) combined with excellent memory for instant, “drop-tight” sealing.
Q: What is the key advantage of EPDM over silicone for this valve?
A: The primary advantage is chemical compatibility. EPDM offers superior resistance to ketones, alcohols, phosphate esters, and many acids and alkalis. It also has excellent resistance to steam, hot water, and weathering, making it a better choice for many industrial and chemical applications where silicone might degrade.
Q: How does the 60-durometer hardness benefit this longer EPDM valve?
A: The 60-durometer formulation is key. It is firm enough to prevent the longer, 20.95mm body from collapsing during insertion or under system pressure/vacuum, yet it remains flexible enough at the sealing tip to provide a sensitive, low-pressure seal.
Conclusion
The JT1076-1 EPDM Duckbill Valve offers a unique combination of deep-port geometry and robust chemical resistance. With its slender 11.15mm x 20.95mm profile, durable 60-durometer EPDM construction, and distinctive red identification, it delivers reliable, one-way flow control for demanding industrial and chemical applications. For the detailed technical drawing or to discuss custom modifications, contact our engineering team today.
